Melt Blown Filters

Melt Blown Cartridges are manufactured from 100% Polypropylene construction. They offer excellent filtration and good thermal stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart taste, odor, or color to the filtered product and has superior chemical resistance for process fluid applications. Optional Grooving effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. Cartridges are available in various sizes, micron ratings, and end treatments.

The MBG Series filters are gradient-density, grooved melt-blown cartridges manufactured from FDA-graded polypropylene. A cut groove process maintains open pore construction, doubling usable surface area. They are available in 1 to 50-micron and 10 and 20-inch lengths, with optional end treatments.

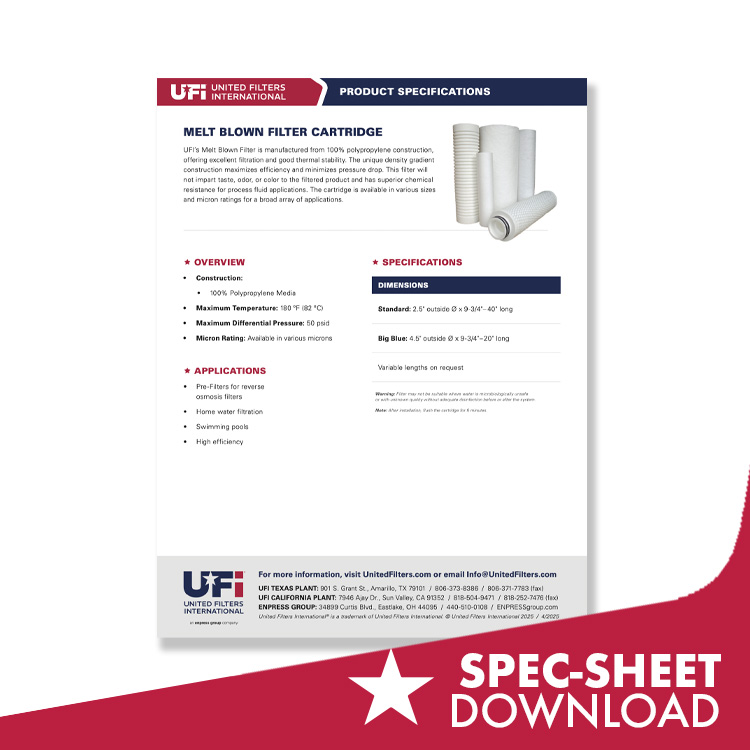

UFI’s Melt Blown Cartridges is manufactured from 100% Polypropylene construction offering excellent filtration and good thermal stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart taste, odor, or color to the filtered product and has superior chemical resistance for process fluid applications. Grooving option effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. All these qualities resulting in a lower cost of ownership.

Cartridges are available in one to 50-micron ratings, 2.5-inch and 4.5-inch outside widths and 4-inch to 50-inch lengths, and various end cap configurations (see below) for a broad array of applications.

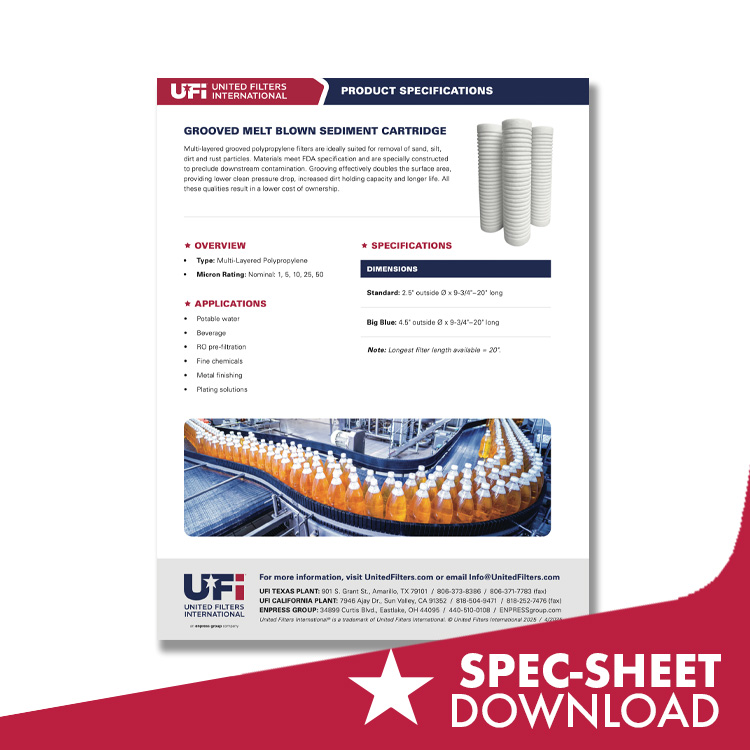

Multi-layered graded density grooved polypropylene filters are ideally suited removal of sand, silt, dirt and rust particles. Materials meet FDA specifications and are specially constructed to preclude downstream contaminate. Grooving effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. All these qualities resulting in a lower cost of ownership. Cartirdges are available in 1, 5, 10, 25 and 50 micron nominal filtration, both in standard 2.5-inch and big blue 4.5-inch outside diameters and 5-inch, 10-inch” and 20-inch lengths.
